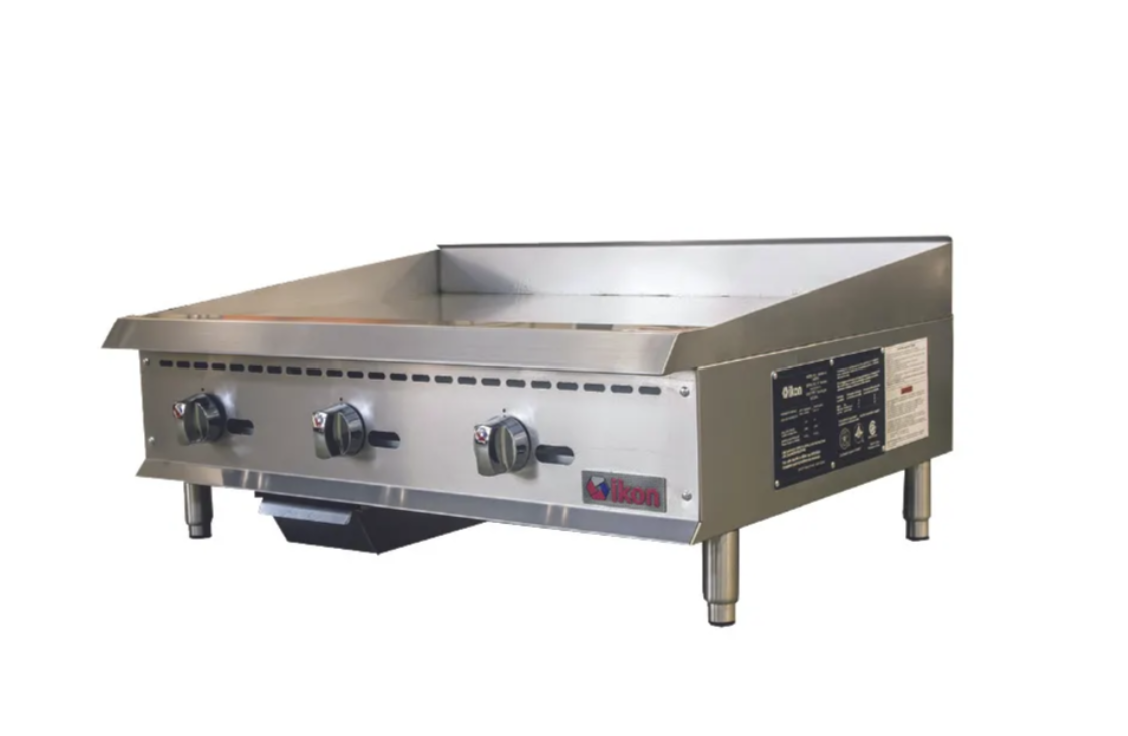

IKON IMG-36" Manual Control Commercial Gas Griddle – 90,000 BTU
IKON IMG-36" Manual Control Commercial Gas Griddle – 90,000 BTU
Couldn't load pickup availability
- Full manufacturer warranty
- Ships from Cleveland in 2–3 business days
- Fast shipping in 2-3 business days
- Expert support: 800-453-6750
The IKON IMG-36 36" Manual Control Commercial Gas Griddle delivers powerful, even cooking performance for restaurants, diners, food trucks, concession operations and other high-volume commercial kitchens.
Three U-shaped burners provide 30,000 BTU each for 90,000 total BTU, distributing heat evenly across the cooking surface. The heavy-duty 3/4" polished steel griddle plate provides excellent heat retention for cooking burgers, bacon, eggs, pancakes, cheesesteaks, grilled sandwiches and more.
Independent manual controls allow operators to create multiple cooking zones across the 36" surface, while the stainless steel cabinet, welded splash guards and removable grease drawer are designed for demanding commercial use and easy cleanup.
Available for Natural Gas or Liquid Propane, with a conversion kit supplied with the unit.
Key Specs
• Model: IMG-36
• Brand: IKON
• Equipment Type: Commercial Countertop Griddle
• Overall Dimensions: 36"W × 34.4"D × 15.5"H
• Cooking Area: 36"W × 20.5"D
• Griddle Plate: 3/4" thick polished steel
• Controls: Manual
• Burners: 3 U-shaped burners
• Burner Output: 30,000 BTU each
• Total Output: 90,000 BTU
• Gas Type: Natural Gas or Liquid Propane
• Gas Connection: 3/4" NPT
• Natural Gas Pressure: 4" W.C.
• LP Gas Pressure: 10" W.C.
• Construction: Stainless steel cabinet
• Unit Weight: 220 lbs
• Shipping Weight: 284 lbs
Features
• Independent gas control every 12"
• U-shaped burners for even heat distribution
• Heavy-duty 3/4" polished steel cooking surface
• Front-accessible pilot lights
• Cool-to-the-touch stainless steel front edge
• Double-wall insulated sides
• Fully welded back and side splash guards
• Rear flue for ventilation
• Adjustable stainless steel legs with non-skid feet
• Removable 3-1/4" grease drawer with weep hole and baffle
• 4" wide grease trough
• Fully serviceable from the front
• Gas conversion kit included
Ideal Use Cases
• Restaurants and diners
• Breakfast restaurants
• Burger and sandwich shops
• Cafés and delis
• Food trucks
• Concession stands
• Bars and taverns
• Institutional kitchens
• High-volume commercial kitchens
CLICK HERE TO DOWNLOAD SPEC SHEET
